Swing Bridge by Tonkin Liu

| |

Project Details:

Type: Landscape & Urbanism| Public Architecture

Architect: Tonkin Liu

Location: United Kingdom

Address: London

Program: Bridge

Year: 2020

Area: 8 sq.m.

Photographer: James Balston| Stuart Chambers

The unique circumstances of the Crystal Palace Park Dinosaur Islands and the need for a secure crossing inspired the structural artwork of Swing Bridge. Informed by Tonkin Liu team’s decade-long immersion in biomimetic studies, the project delivers three specific innovations: swinging to access the banks, undulating geometry for structural strength, and the comb construction technique.

Swing Bridge by Tonkin Liu
Swing Bridge by Tonkin Liu

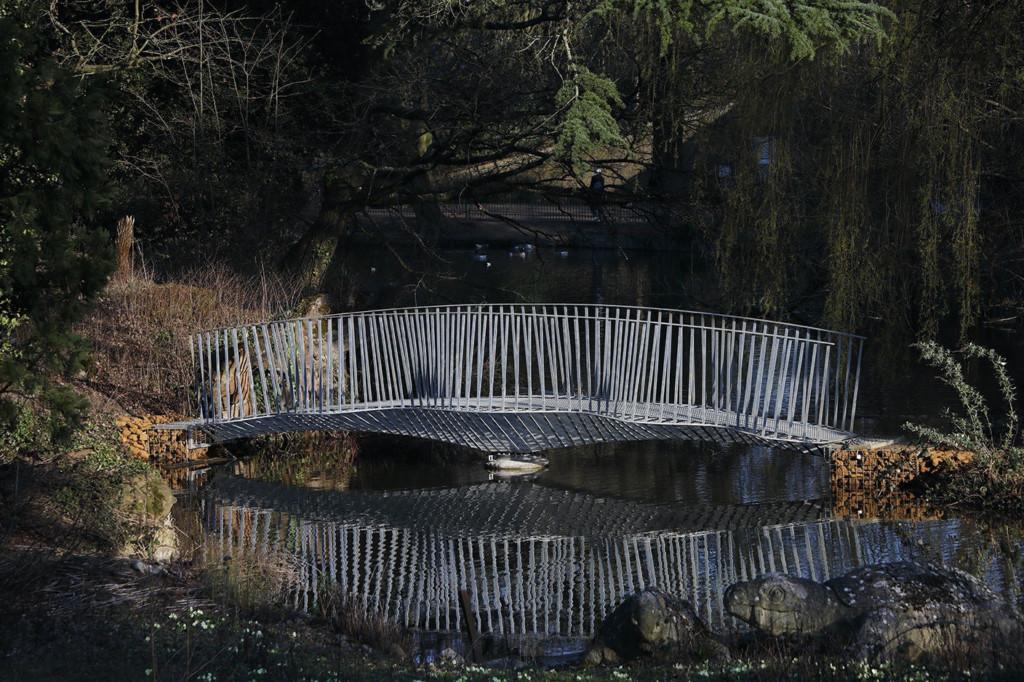

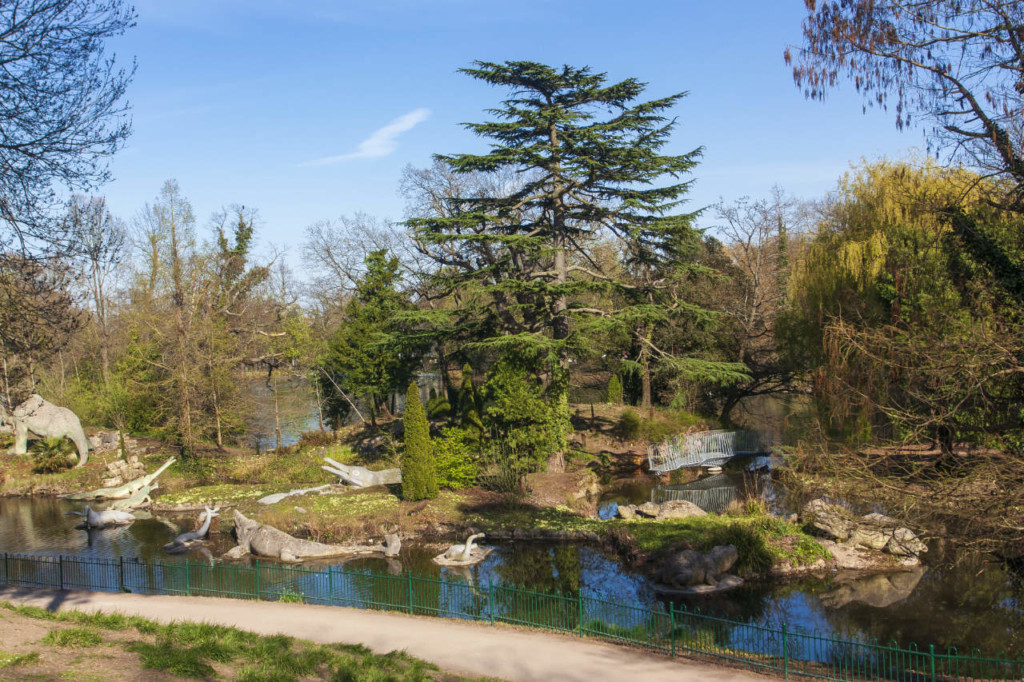

The 167-year-old, Grade I Listed concrete Dinosaur sculptures were configured to depict extinct animals in the lost worlds of deep geological time. The team chose the bridge’s location to mark the start of this sequence, helping to tell a story of evolution, which in turn inspiring the reference to the prehistoric bony fish, the precursor to the Dinosaurs and the evolutionary timeline depicted on the islands.

Swing Bridge by Tonkin Liu

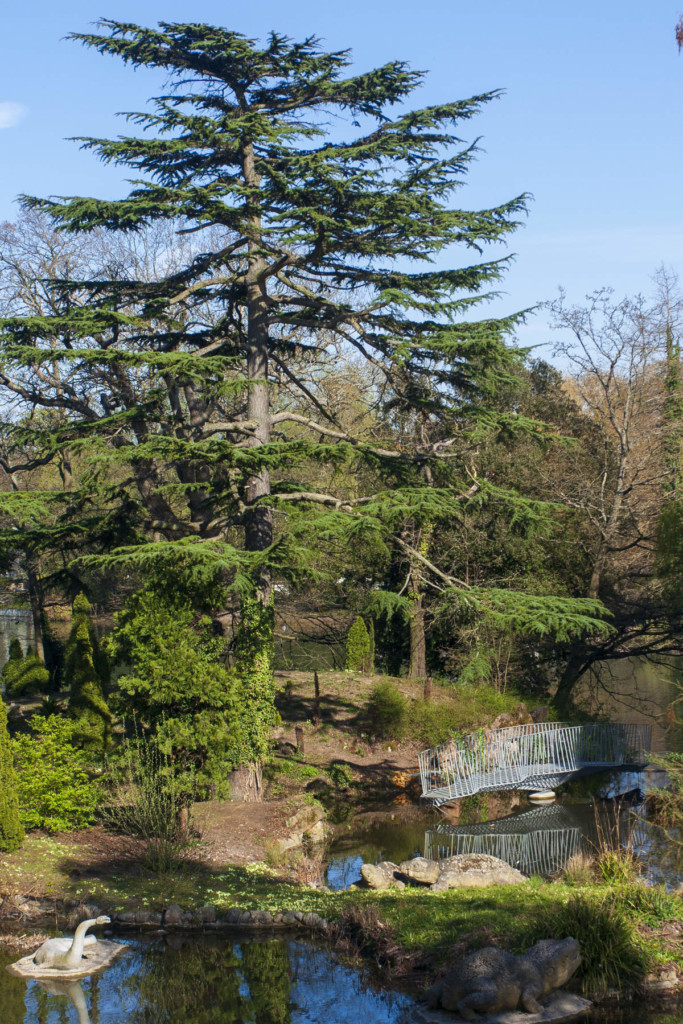

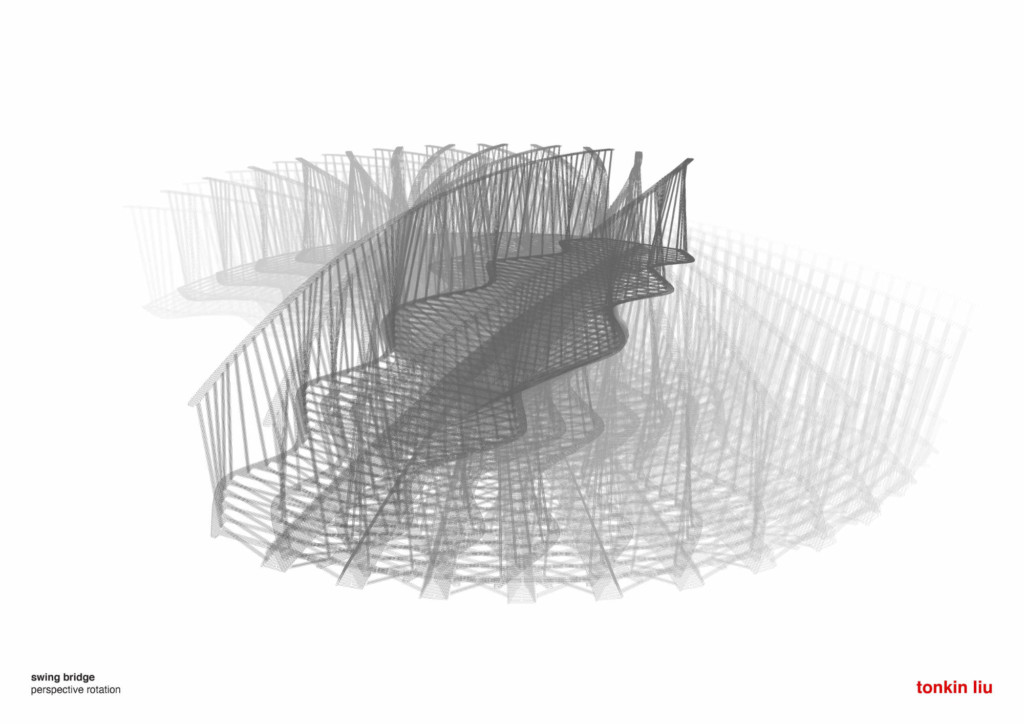

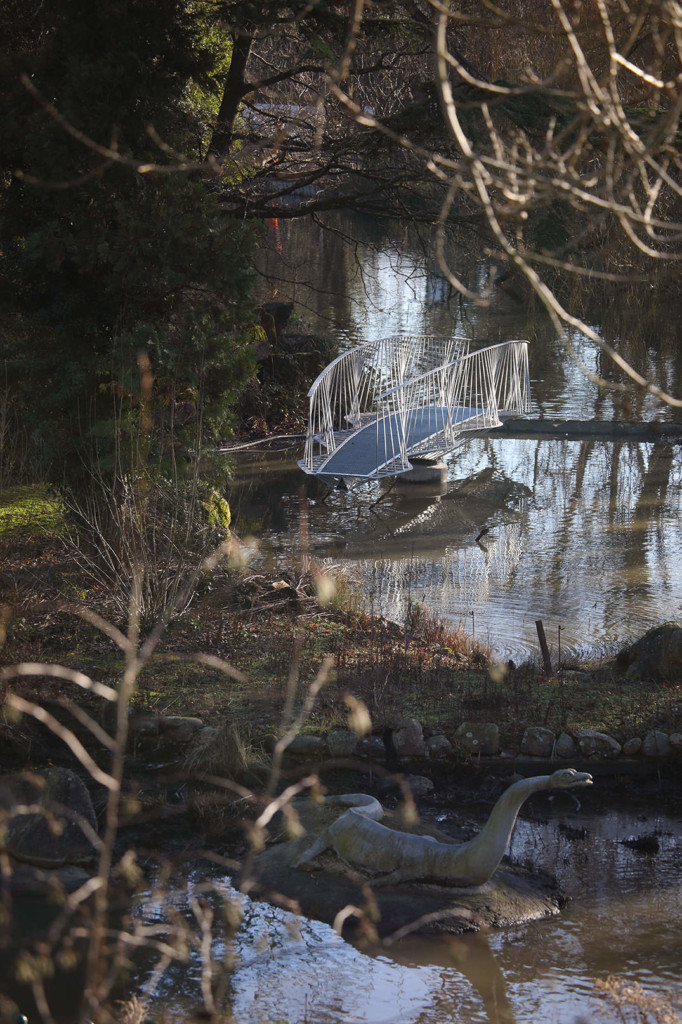

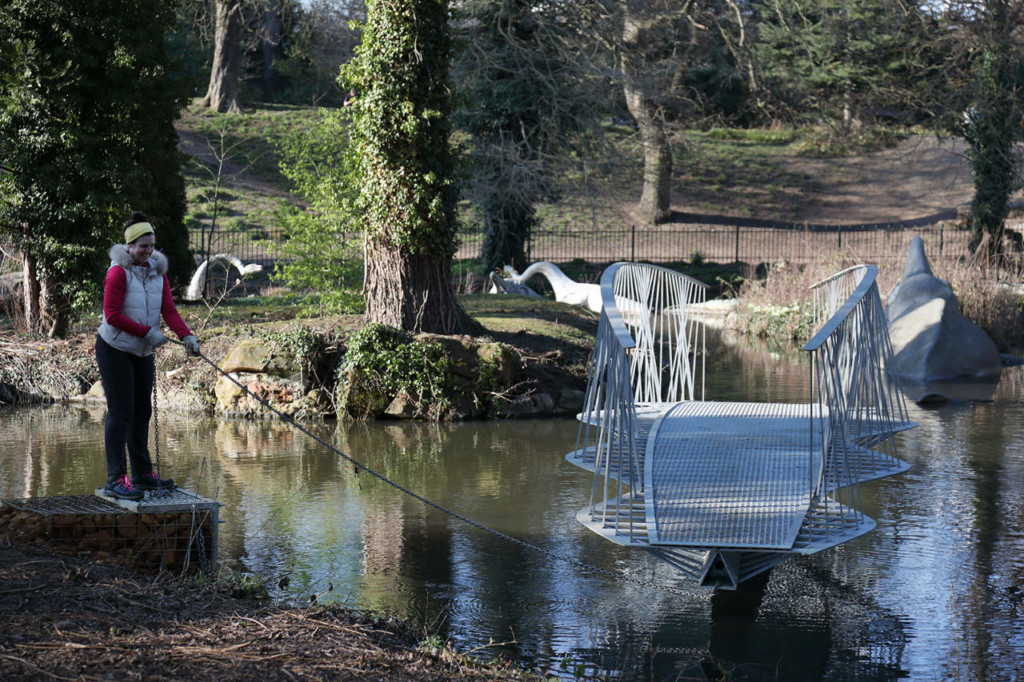

To protect access to the Dinosaur Islands, the bridge has been designed to remain in the water and only make its connection to land when access is given for education and for maintenance. This negates the need for a large protective barrier, keeps its distance from the Dinosaurs, and requires only one central foundation. Crystal Palace Park in turn enjoys, when the bridge is not in use, a sculptural artwork floating in water.

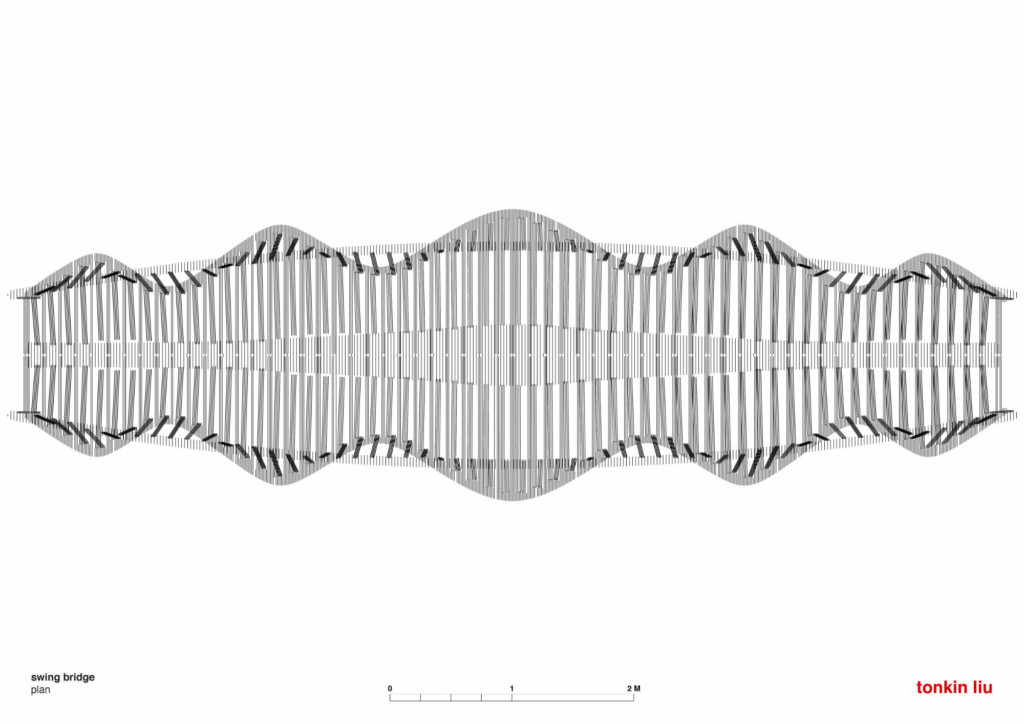

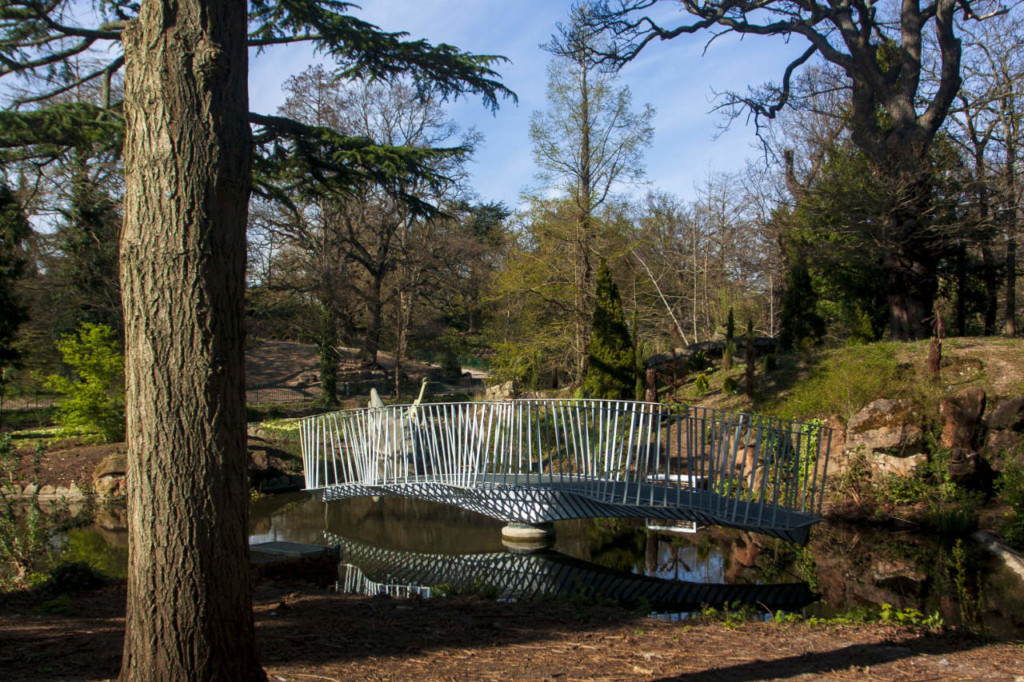

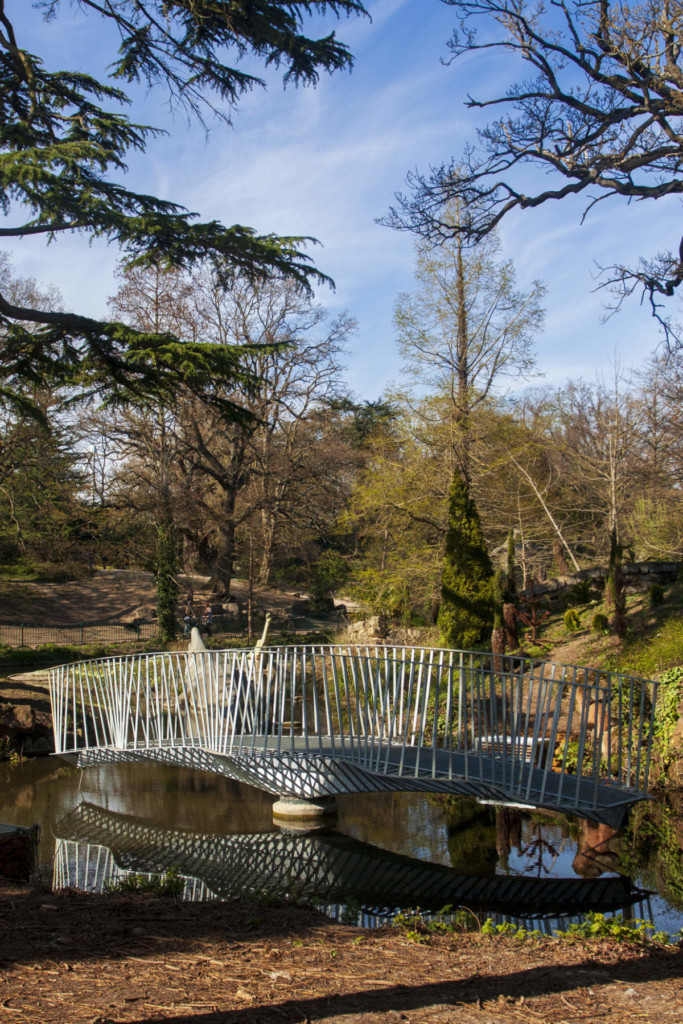

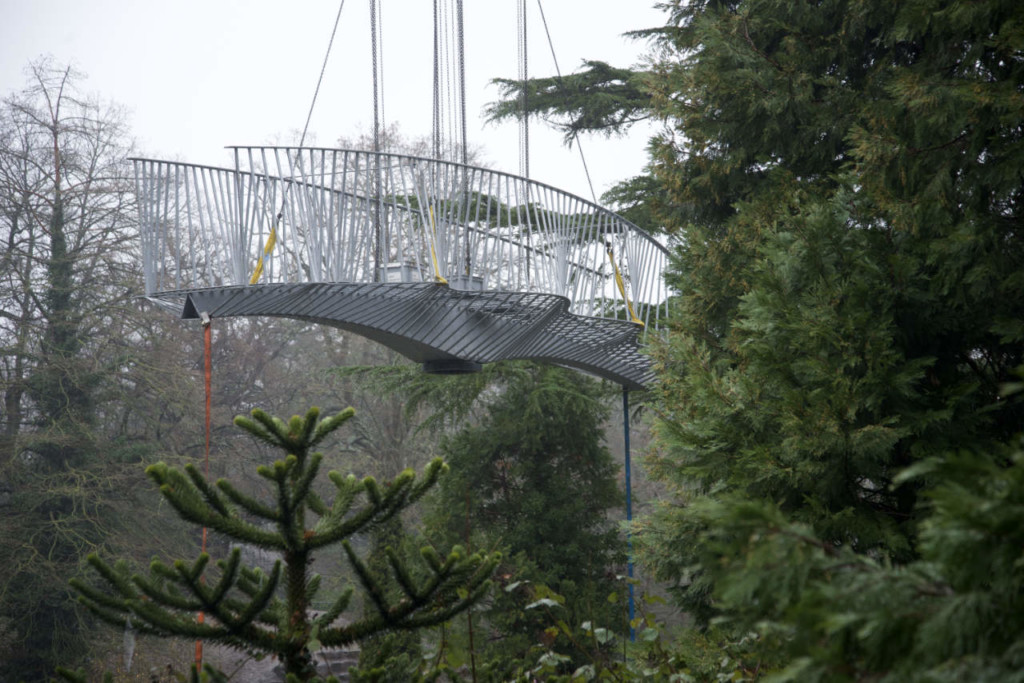

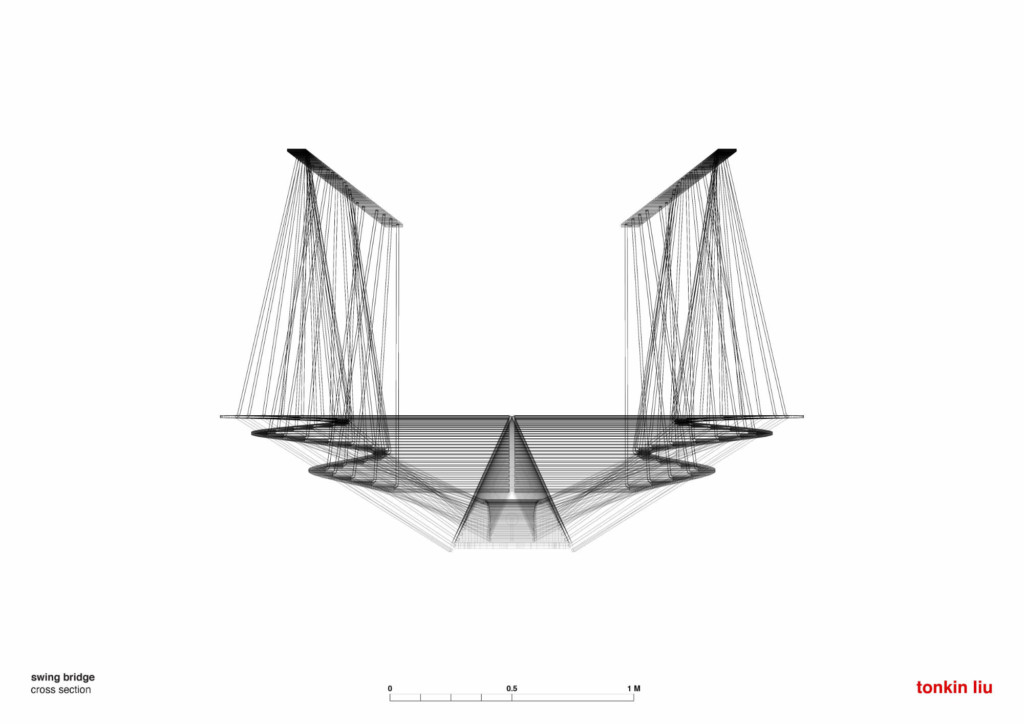

Form gives strength through geometry in each of the component of the structure. A triangular spine beam delivers load to the central bearing, its tailored form is minimised in response to the bending moments. The skeletal deck structure projects out from the beam’s backbone like form. The bridge form gains overall strength from being widest and tallest over its central support.

Swing Bridge by Tonkin Liu

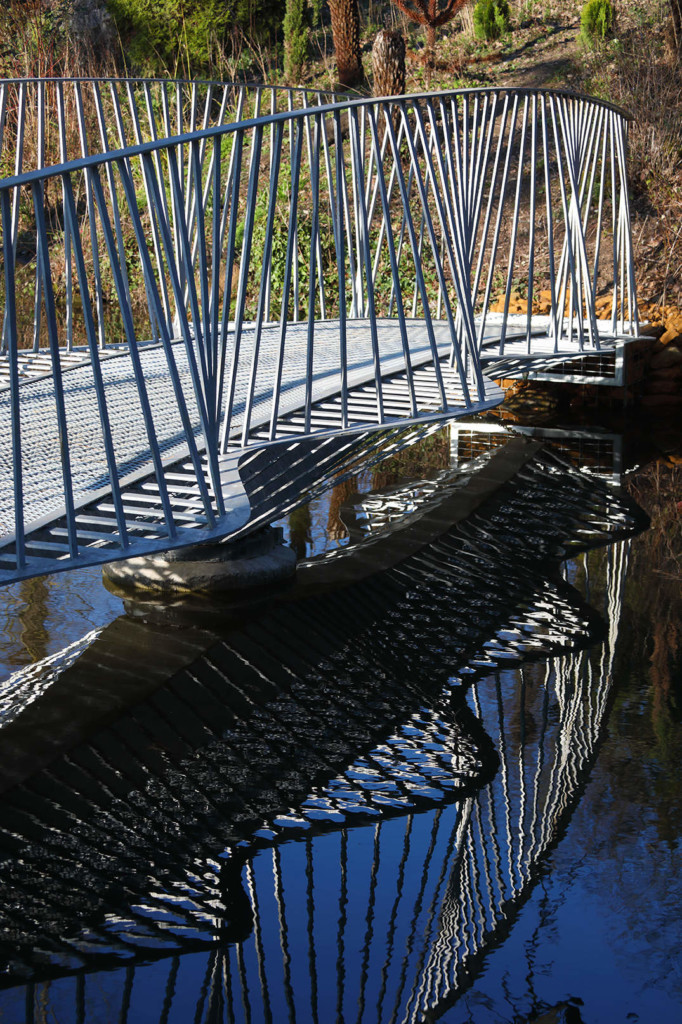

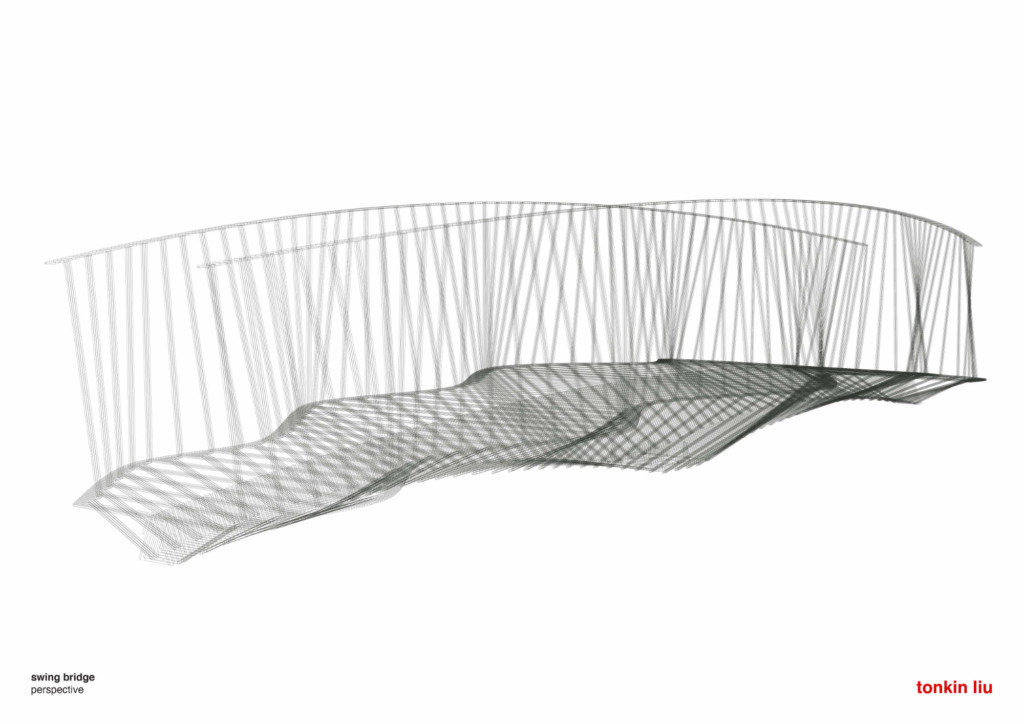

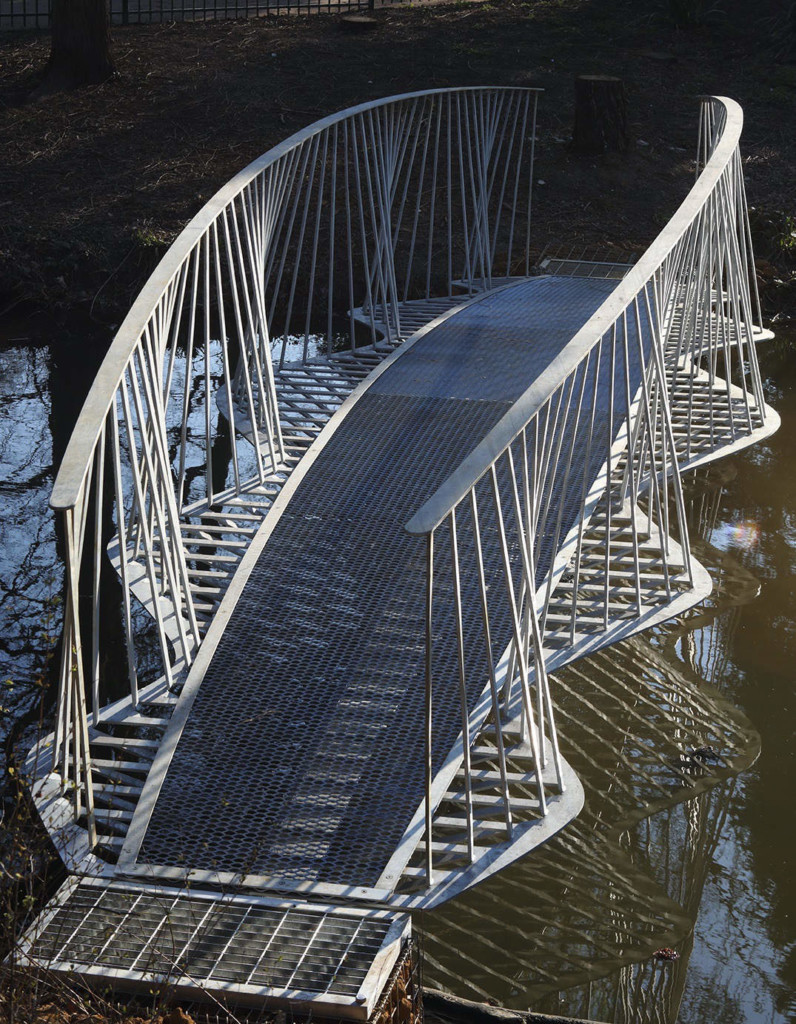

Minimal thickness of the steel sheet is achieved by optimising resistance through the geometry. In the evolution of the first bony fish, an undulating movement produces a force that propels it forward. The undulating form of the balustrade and deck resists forces applied to the handrail through a push-pull action. The balusters lean backward and forward along the length of the undulating deck, the outer acting as a strut and the inner acting as a tie. The multiple bent and welded prongs act together like spokes in a wheel to give the undulating form lateral stiffness. The frequency and pitch of the oscillation have been engineered to find the optimum form.

Swing Bridge by Tonkin Liu
Swing Bridge by Tonkin Liu

How is the project unique?

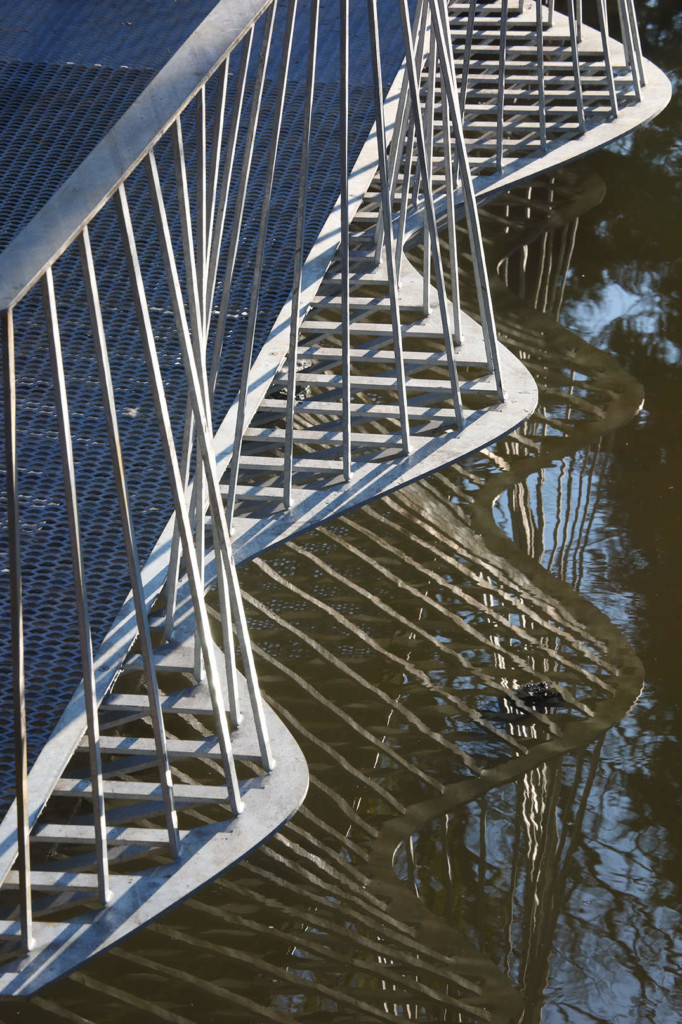

Responding to budgetary constraints and drawing on the iconography of the bony fish, Tonkin Liu proposed the laser-cut skeletal comb structural technique. The plate is laser-cut to prongs of three different lengths. One prong remains flat to form the bridge deck, one is bent up to form the balustrade, one bent down to form a strut to the lower edge of the central beam, utilising the whole surface of the 10mm steel sheet. This minimises material cost and wastage, reduces the amount of welding by 50%, and allows for the direct expression of strength in sculptural form.
